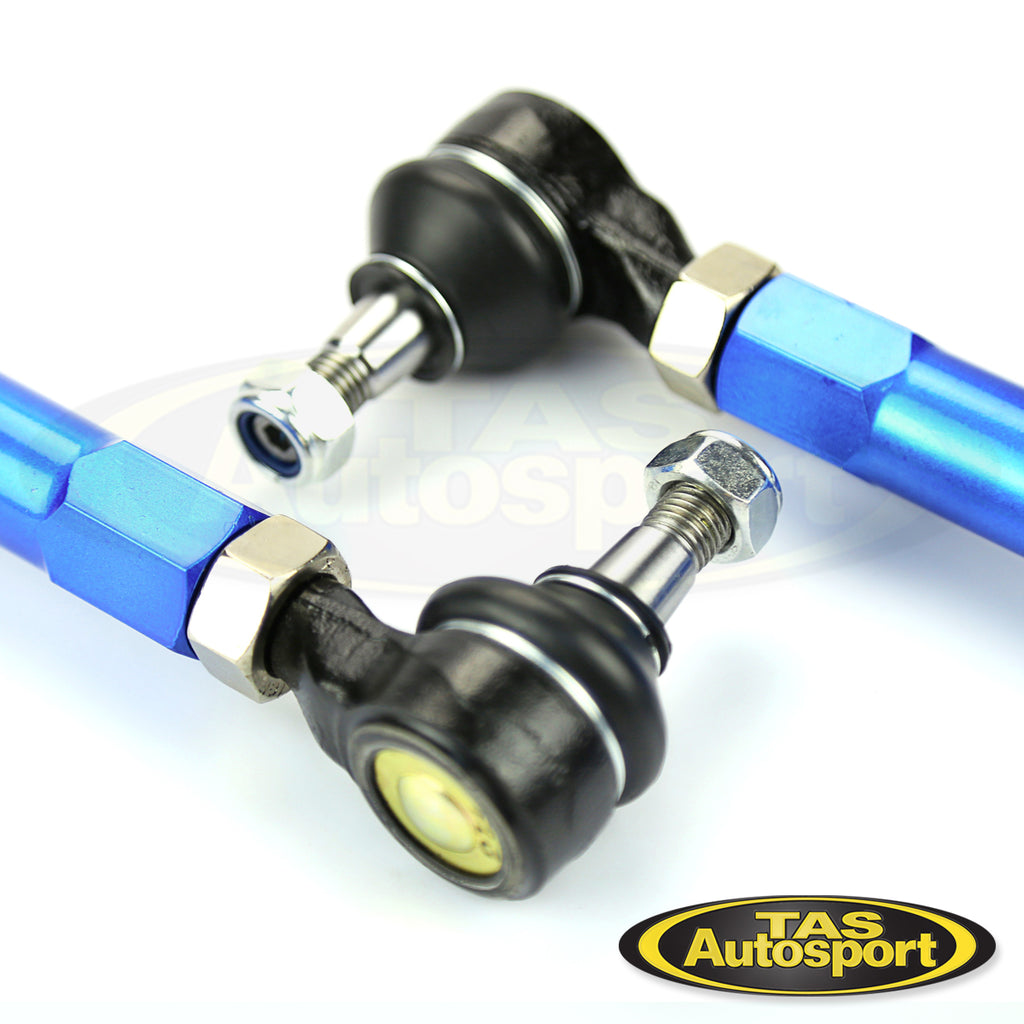

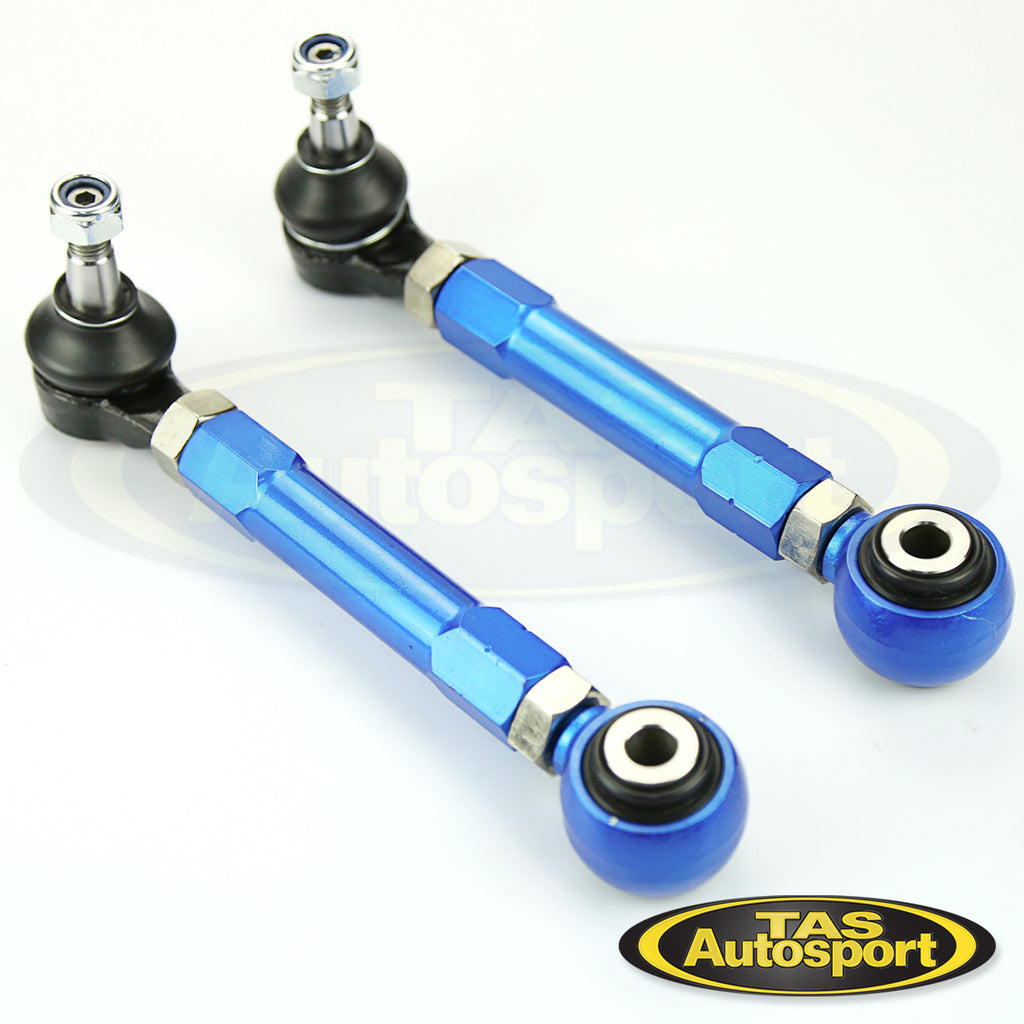

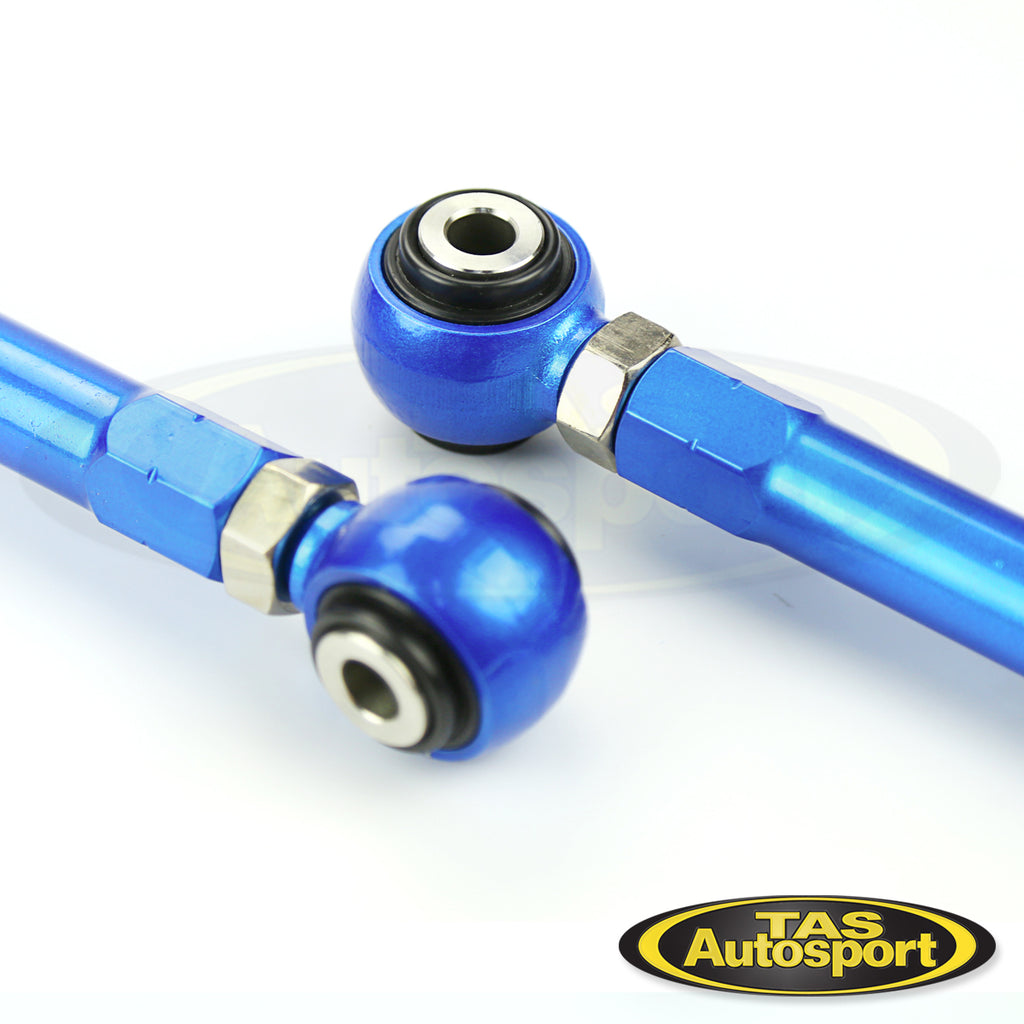

Rear Toe Rod Control Arms for Toyota Chaser JXZ90-100
Super Heavy Duty Fully Adjustable Arms
Upgrading to these arms allows energy to transfer more efficiently into your suspension components to give you a more predictable and consistent handling characteristics.
- HEAVY DUTY FULLY ADJUSTABLE ARMS
- MANUFACTURED FROM HIGH TENSILE STEEL
- LONG LIFE SEALED SPHERICAL BEARING
- HIGH QUALITY RUBBER BOOTS FOR EXTRA BEARING PROTECTION
- ENGINEERED FOR STREET AND TRACK USE
Rear Adjustable Control Arms - -3.5°/+3.5°
This kit corrects rear toe when the vehicles lowered up to 3'' with adjustment range of -3.5°/+3.50°.
The design of these arms gives more clearance.
Material: Made of High Tensile steel, processed with heat treatment to increase hardness and strength of metal.
Bushings are made of hard rubber bushings, for a more direct feel and driving experience.
Can be adjusted without removing from the vehicle
Eliminates premature tyre wear while improving handling and stability.
Wider range of camber adjustment suitable for street or track tuning.
For the Ultimate Setup: Use these with 'Rear Lower Camber Arms', to keep the rear suspension aligned properly.
Toe is how parallel the wheels are to each other on a horizontal plane.
This is the main cause of excessive tyre wear (not camber as often suggested).
TOE IN gives straight line stability, so it effects “drive” or “bite” when drifting/accelerating.
When the wheels are pointing in they want to “push” the car forwards.
TOE OUT gives straight line instability, as the wheels are facing outwards they always want to “turn”.
This is used to give better initial turn-in to a corner and increased leading wheel steering angle.
Excessive in/out toe will heavily affect tyre wear, so most road cars use near zero (parallel) toe.
