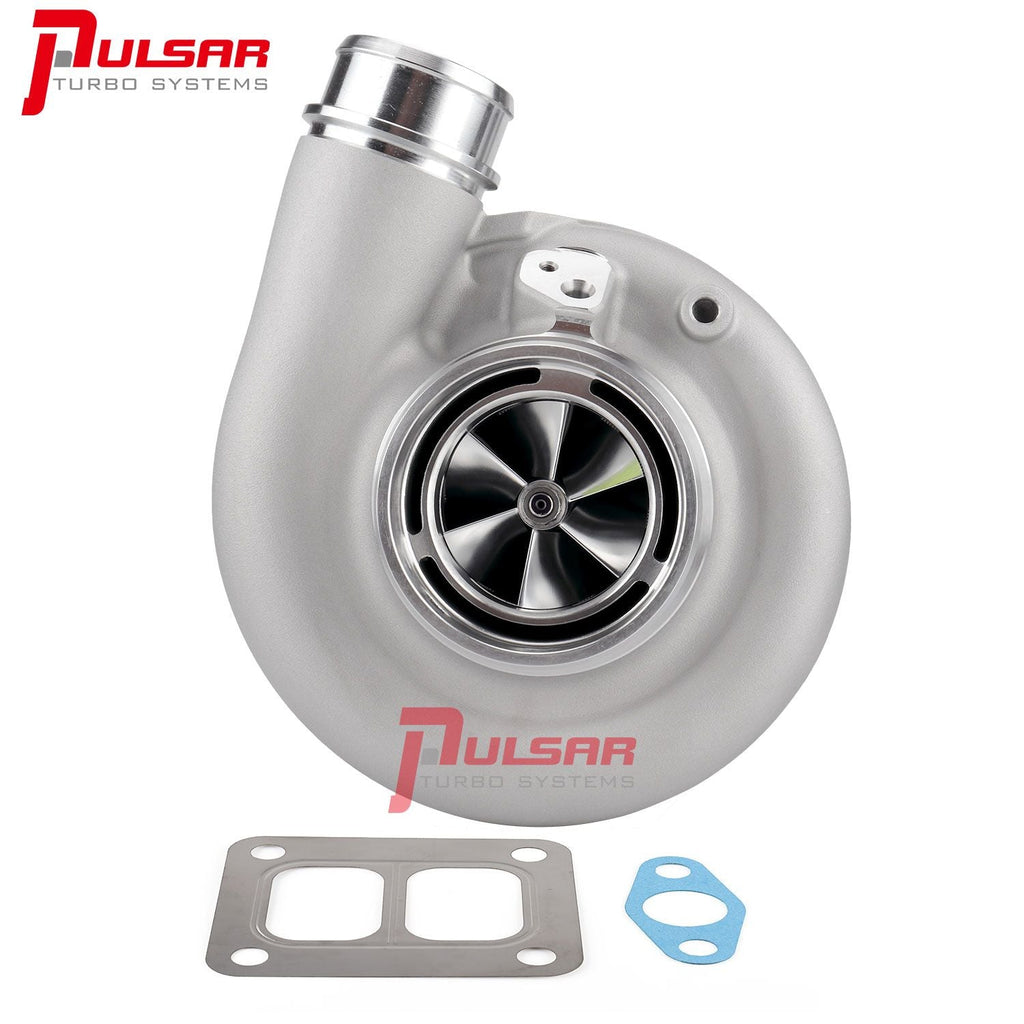

- Dual Ceramic Ball Bearing Systems
- 6+6 Blade 72*96*98.5mm Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 80*73mm Turbine Wheel
- G2 compressor cover with ported-shroud inlet and integrated with the speed sensor port
- Max Flow Rate: 100+ lb/min, rated @ 1100FWHP
Description
- Bearing Systems:? Dual Ceramic Ball Bearing
- Compressor Wheel: 72*96*98.5mm
- Turbine Wheel: 80*73mm
- Compressor Inlet: 4.0 Hose
- Compressor Outlet: 2.5 Hose
- Turbine Inlet: T4 Divided
- Turbine Outlet: 4.21″ Marmon
- Oil Feed: 1/4″ NPT
- Oil Drain: Std T4 Flange
