The new Profec is compact, powerful, and easy to use. The large OLED Display, with the simple two-button / rotary-dial control, makes for intuitive operation. An ultra slim controller can display in digital, bar-graph, or graphical modes and can be rotated 180 degrees for installation with the included adjustable mount or flush mounted. By separating the display and control unit in the driver’s compartment, from the engine compartment-mounted, waterproof, sensor unit, it makes installation straightforward. Only one thin harness is required to be routed through the firewall.
The combination of the new 300kPa (43.5psi) integrated pressure sensor, the more compact solenoid valve, and the faster ECU processer, provide quicker response and the most stable boost curves yet. The PRofec also maintains popular features like, Lo, Hi, Scramble boost presets, last-boost display, peak-hold recall, warning alert, and safety limiter.
Product Features: Display/Control Unit, Sensor Unit with Pressure Sensor, Boost Solenoid, and Adjustable Mounting Bracket Separating the Display Unit from the Sensor Unit To keep the Display Unit as slim as possible, a separate water-resistant Sensor Unit was developed. The added benefit of this, however, is the convenience of installation. Now that the Sensor Unit is mounted in the engine room, only a single thin harness is required to be routed through the vehicle's firewall. Select between 3 Types of Boost Display Screens (kPa or PSI)
• Numerical Display
• Bar Graph Display
• Map Trace Display
Simple and Easy operation
One push and round switch, two push buttons Developed with simple operation.

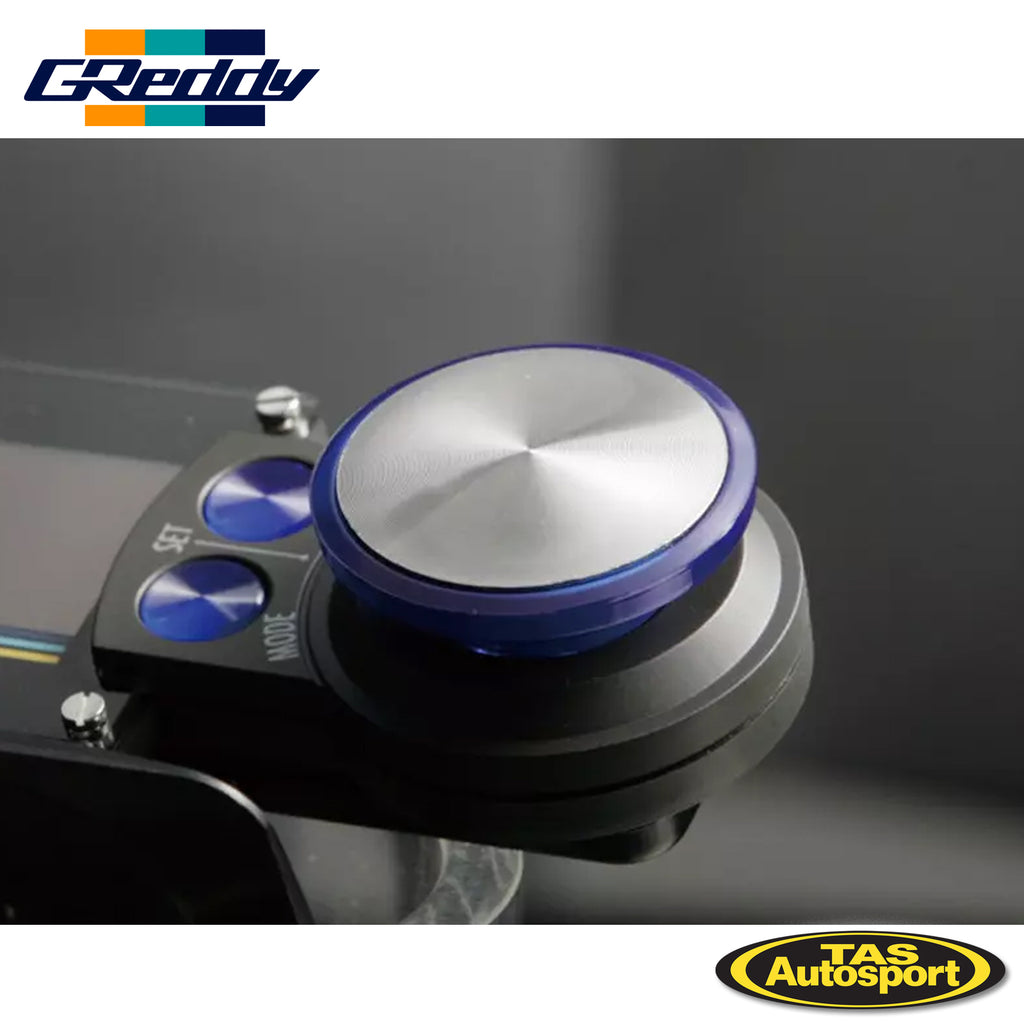

Intuitive operation with dial
The new Profec series adopts same rotaly dial with dual switch as before that is symbol of profec series.You can operate intuitively from the driver seat. Even the compact body, with the dial switch, it enables high level controlability.
Adopted new SOLENOID VALVE and CPU
The more compact solenoid valve and faster newest ECU processer provide quicker response and the most stable boost curves yet.
Separate controller unit and power unit
To keep the display unit as slim as possible, a separate waterresistant sensor unit was developed. Now that the sensor unit is mounted in the engine room, only a single thin harness is required to be routed through the vehicle’s fire wall.

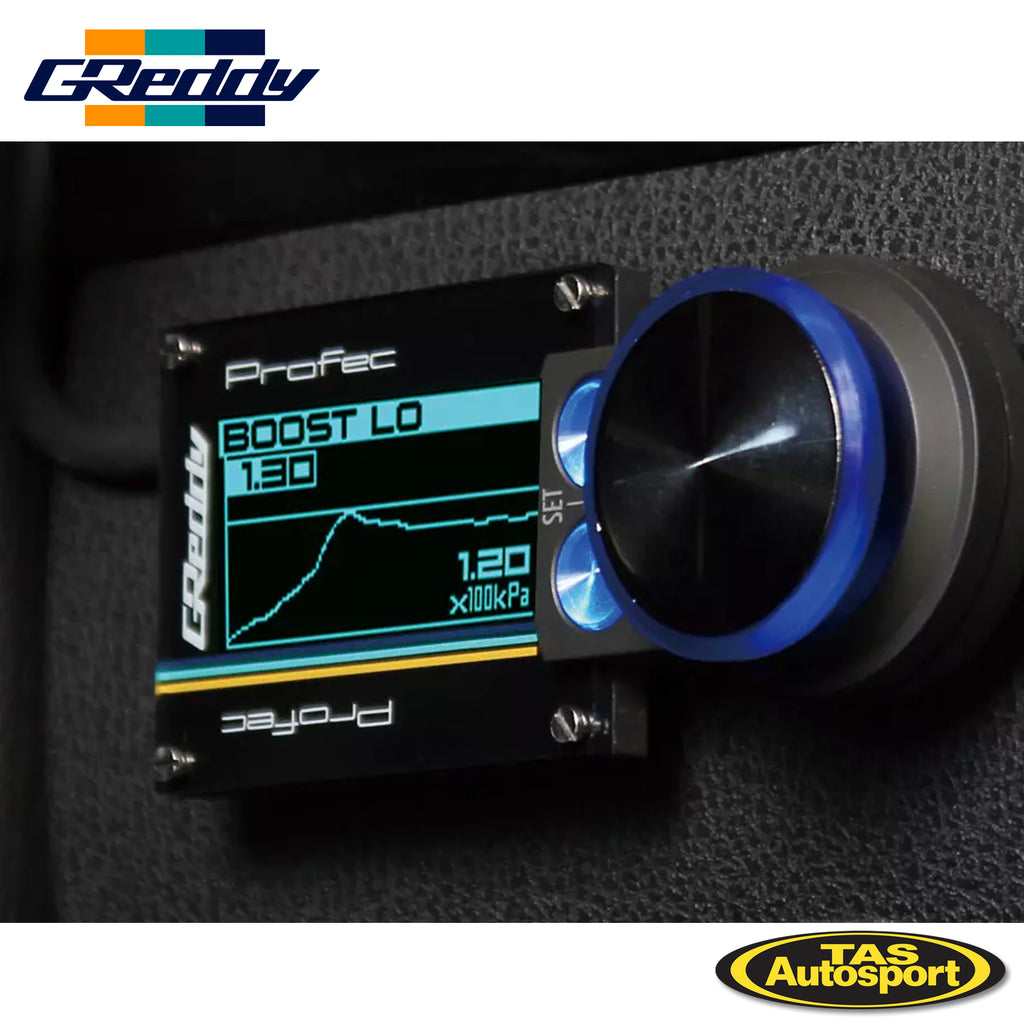

Excellent visibility with OLED display
OLED(Organic Light Emitting Diode) display offers excellent visibility at a wider range of angles. It is also much brighter than conventional LCD screens, allowing the display to be more compact, yet still effective.
Flexible attachment is available by compact and thin body.
89mm X 36.5mm – 11mm thick flat-screen surface mounting(not included switch) on instrument panel, as well as, the rotating of the display by 180 degrees, opens up numerous mounting options and harness layout.
A lot of convenient functions
Boost display pattern can be selected from 3 patterns.
- Programable LO and HI boost pre-sets, with a 3rd scramble setting.
- Warning feature displays an visual and audio alert when the unit detects an over-boost situation.
- If the boost warning level is surpassed, the Profec can reduce boost levels via a programable limitter function.
- Built-in high performance pressure sensor corresponding to 300kPa
- The Profec can display the last(peak) boost value after each boost session from plus boost to negative boost.
- The peak-hold function can display the maximum boost recorded.
- Boost levels and stability can be fine-tuned by adjusting the GAIN and START BOOST setting.
Dimension : Controller
* Programable LO and HI Boost Pre-Sets, with a 3rd Scamble Setting *
Intergrated 300kPa (43.5psi) high-performance boost pressure sensor (within the Sensor Unit)
* The PRofec can display the last (peak) boost value after each boost session
* The Peak-Hold Function can display the maximum boost recorded
* Boost levels and stabilty can be fine-tuned by adjusting the GAIN and START BOOST settings.
Warning Feature displays an visual and audio alert when the unit detects an over-boost situation. If the boost warning level is surpassed, the PRofec can reduce boost levels via a programable Limiter Function Easy to use controls Simple rotary-dial and dual push-button layout was designed and developed with an emphasis on simple operation Intuitive Dial Operation Unique to this latest generation PRofec is a larger ergonomic rotary-dial control. Along with a new compace display unit size, the controller can be easily mounted within reach of the operator.
This all together creates an intuitive boost controlling experiance. New Compact Solenoid and Improved CPU Control The PRofec uses a new more compact 3-port boost solenoid, controlled by a faster CPU. The result is a quicker responding system, that provides our most stable boost curves yet. Excellent Visibility with the OLED Display OLED (Organic Light-Emitting Diode) display offers excellent visibility at a wider range of angles.
It is also much brighter then standard LCD screens, allowing the display to be more compact, yet still effective. Slim Design Offers Multipule Mounting Options (89mm X 36.5mm - 11mm thick flat-screen) Surface mounting, as well as, the rotating of the display by 180 degrees, opens up numerous mounting options. An adjustable mounting bracket is also included.
