AiM MXm Legends Kit Compact Dash Display
The AiM MXm display has been designed to specifically suit Legends race cars, 2018 onwards fitted with 3 cylinder Yamaha FZ09 engine.
Key Features :
| High contrast | Integrated GPS |
| 5 configurable RGB LED shift lights | 2 configurable RGB LED alarm LEDs |
| 37 pin Legends harness | Choice of 7 colour display screens |
| Wi-Fi connection | 2 high side digital outputs |
AiM MXm Legends Kit Compact Dash Display
AiM has designed a specific connection kit to the Legends cars ECU for the MXm.
This compact MXm display has been designed to specifically suit Legends race cars, 2018 onwards fitted with the 3 cylinder Yamaha FZ09 engine. The Legends cars specific 37 pin Deutsch connector harness allows connection to the vehicle battery and ECU directly, through the 8 pins white JST connector (labelled “ECU”), and to the on-board gear sensor, through the 6 pins white Sumitomo connector (labelled “CH. 1”).
The unit features advanced data logging capabilities and is designed for racers needing all the essential information to monitor the behaviour of their vehicles and to improve their own performance. Designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the internal GPS receiver, analogue/digital inputs and predefined math channels.
This kit is compatible with:
Legends Cars (with 3 cylinders Yamaha FZ09 engine) - 2018 onwards
Integrated Shift Lights and Alarms

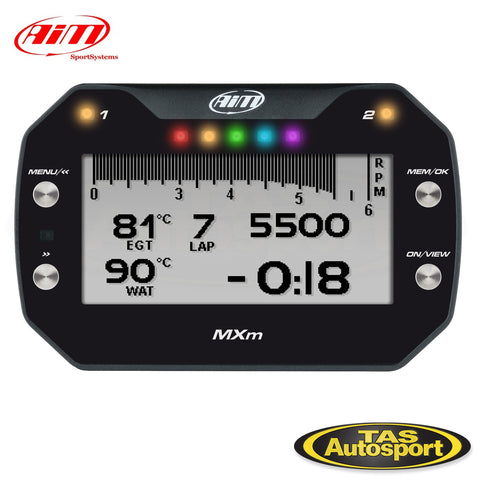

The display has an integrated shift light system that features 5 fully configurable LEDs which can be customised to your requirements and for each gear. Two further LEDs can be configured to operate as warning alarms. These warning lights can be customised for a particular parameter that requires a warning light, the colour of the LED, and whether you want a solid or a flashing style alarm, even the flashing frequency can be tailored to suit your requirements.
Sharp Liquid Crystal Display
Making use of a sharp liquid crystal screen, the user can select the information that is displayed and the backlight can be switched between 7 available colours, all with high contrast and easy to read graphics. The information that is displayed on the screen can be fully configured by the user to prioritise the most important information for the driver. If there is simply too much information to be shown on the screen, the driver can scroll between multiple pages using the integrated buttons so that nothing is missed.

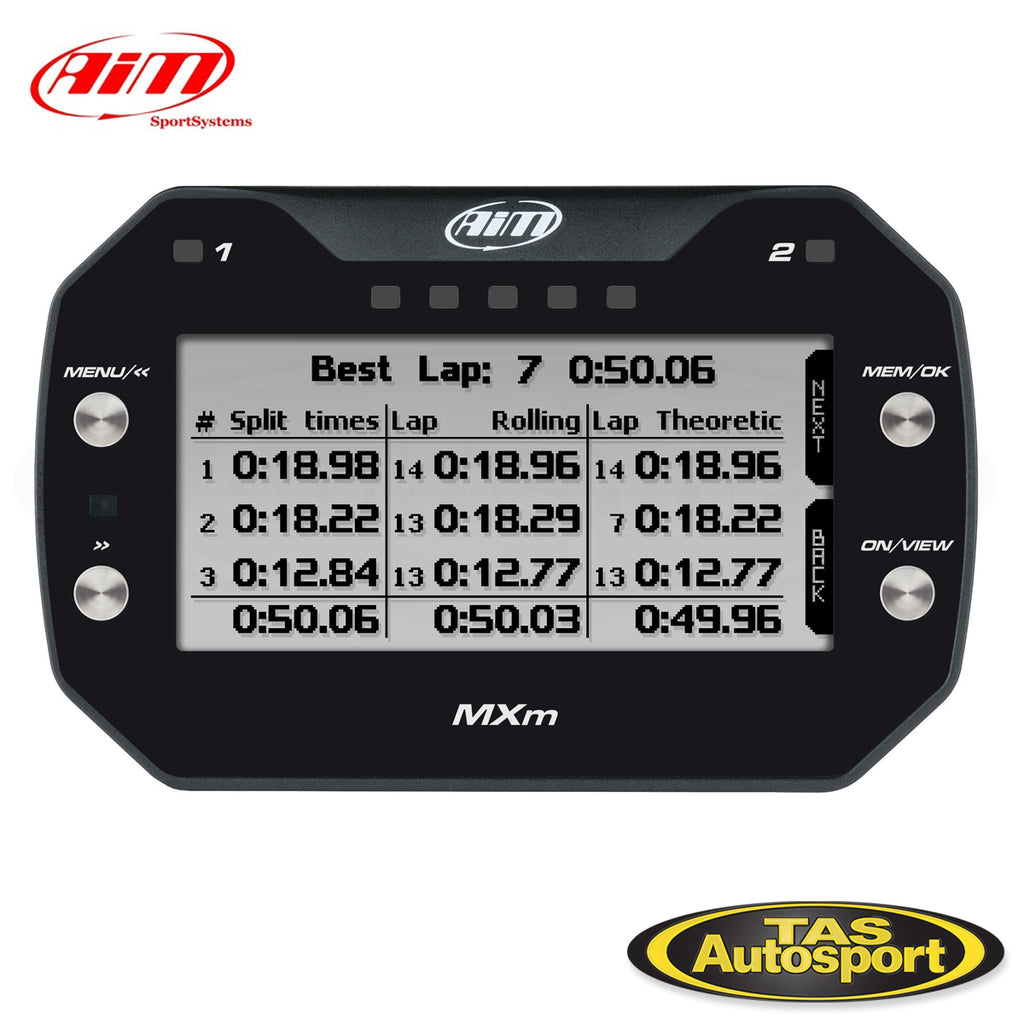

After the session has concluded, all of the data can be recalled on the screen including a summary of the drivers best laps along with max/min RPM, speed and temperatures. If you would prefer to go through the data in more detail, the MXm features a Wi-Fi function to enable fast and secure data transfer to a laptop or PC up to 50 meters away, so you no longer need to take the laptop to the car.
